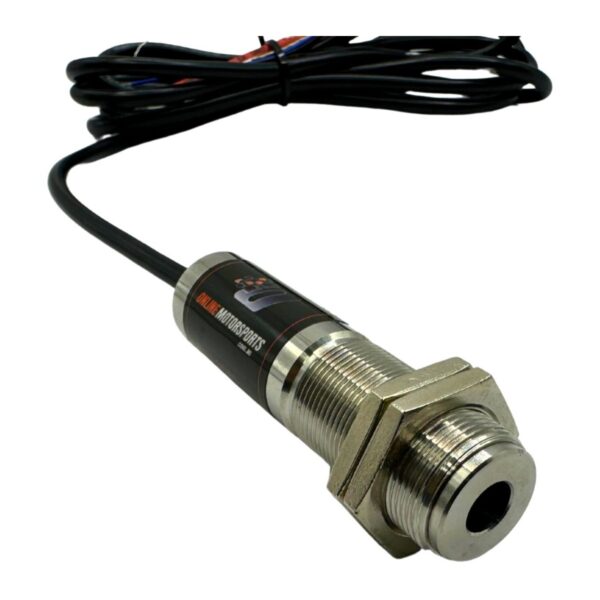

Infrared Laser Temp Sensor (Tyre & Track)

Infrared tyre and track temperature sensor. Accurately measures the surface temperature of any surface. Fast response time and highly accurate measurements sent via a 0-5V signal.

Specifications

• Sensor range: 0-300℃
• Output signal: 0-5V
• Supply voltage: 6-24V
• Response time: 200ms
• Accuracy: ±1% or ±1℃

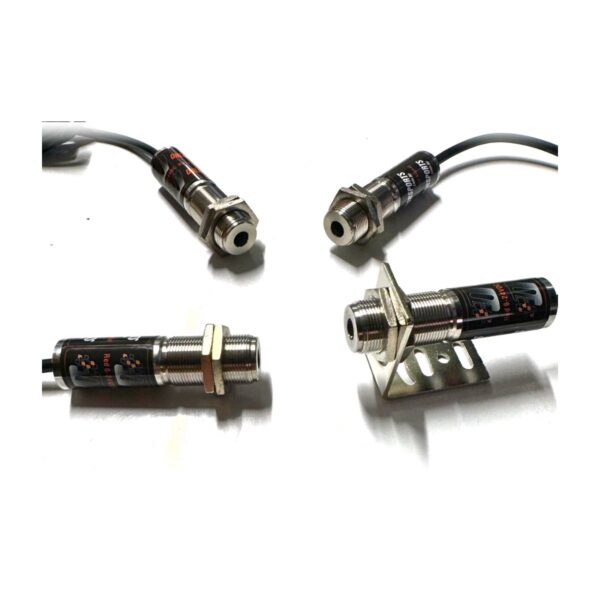

• M18 threaded stainless steel body for easy mounting in any location
• 2m long black cable

Wiring

• Red – Supply voltage (6-24V DC)
• Black – Sensor ground
• White – Signal (0-5V)
• Clear – Shielded cable / chassis ground (optional)

Good to Know

• Mount the sensor at 45° to the surface. Keep the optical eye clean and fit the protective cap when not in use.
• See separate listing for a package deal of two sensors. One for the track and one for the tyre.

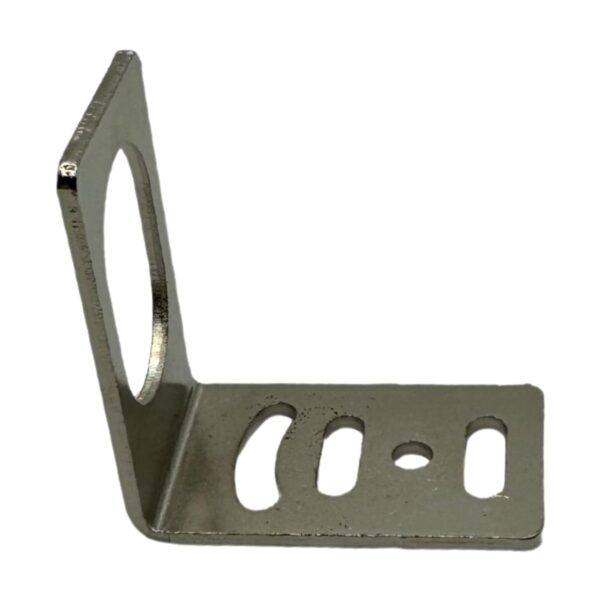

• Mounting bracket sold separately.
• Connector kits sold separately.

Download the full install & wiring guide (PDF)
