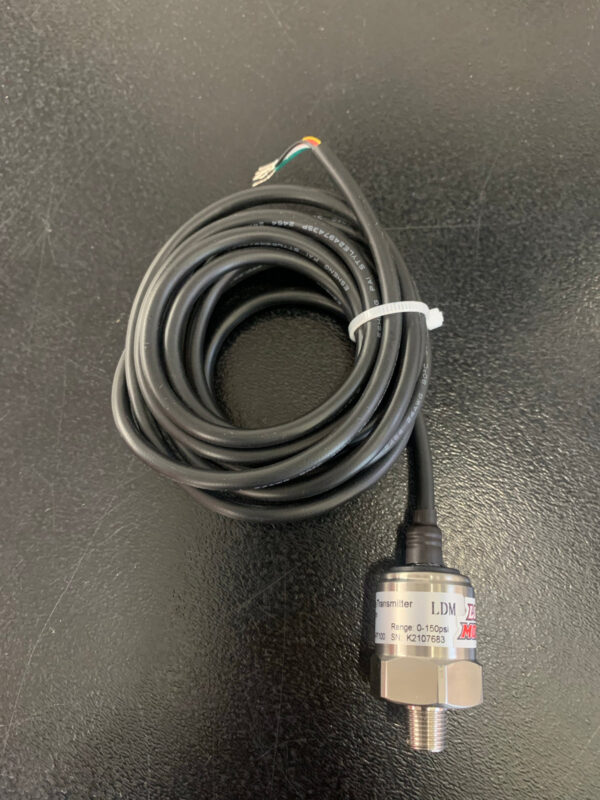

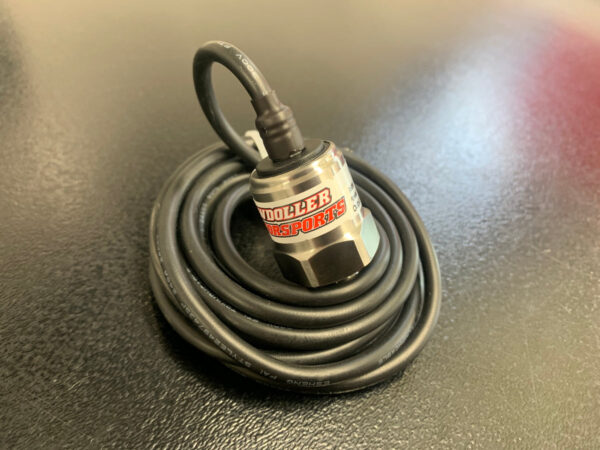

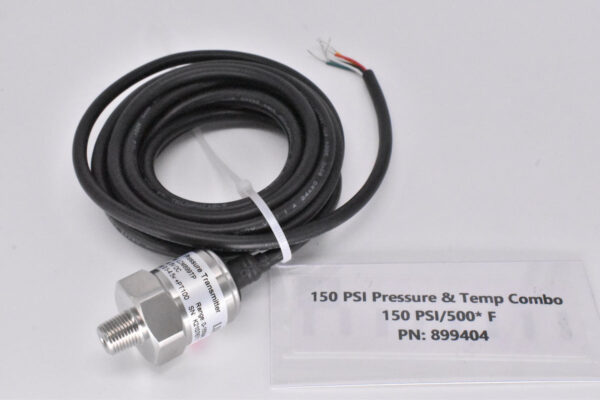

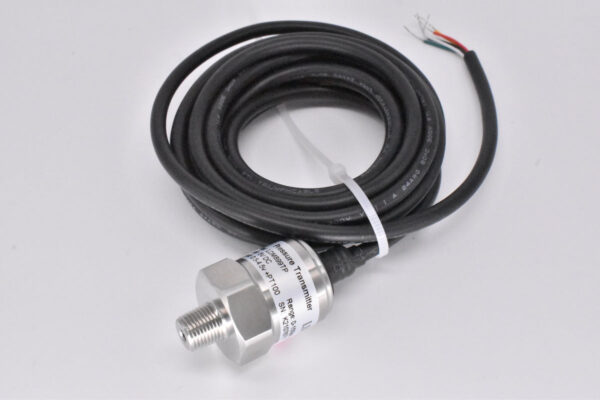

Lowdoller Pressure & Temperature Combo Sensor 150 PSI

A 150 PSI version of the Lowdoller combo sensor, reading pressure and temperature in one compact body the same size as a standard 100 PSI sensor.

Reading both pressure and temperature from a single sensor saves a port, a second sensor and a second run of wiring, making it ideal where space is tight. Suits fuel, oil and other fluid systems that run above 100 PSI.

Specifications

• Pressure range: 0–150 PSI
• Temperature range: 0–500°F (0–260°C)
• Thread: 1/8″ NPT
• Pressure output: 0.5–4.5V linear
• Temperature element: PT100 style (100Ω at 0°C)
• Accuracy: 0.5% of full scale
• 8.5ft (approx. 2.6m) flying lead, so you can cut to length and fit a connector where it suits. A Deutsch DTM connector is recommended.
• Oil-filled diffused silicon element with ASIC chip, shock, vibration and corrosion resistant
• Compatible with Holley, Haltech, FuelTech and other ECUs and loggers that accept 0.5–4.5V inputs

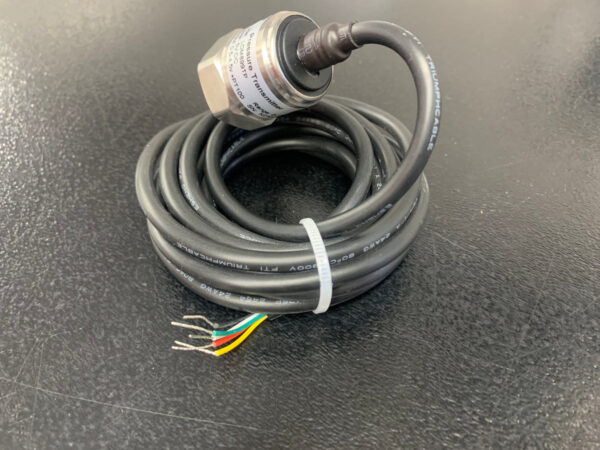

Wiring

• Red: 5V supply
• Black: sensor ground
• Yellow: pressure signal
• White: temperature sensor ground
• Green: temperature signal to ECU

Manufactured by Lowdoller Motorsports. For off-road and competition use only.
